Cognitive MRI of AI Conversations: Analyzing AI Interactions through Semantic Embedding Networks

Complex network analysis has been widely applied to textual data, from co-word occurrence networks [1] to citation networks [7]. More recently, researchers have applied network science to semantic relationships, using word embeddings (dense vector representations of words that capture semantic meaning) [4] or document vectors [5] to create similarity-based networks.

Dense vector representations of text have revolutionized natural language processing. These embeddings map text to high-dimensional spaces where different dimensions encode various semantic and syntactic features. Word2Vec [5] demonstrated that embeddings capture analogical relationships (e.g., king - man + woman $\approx$ queen). Modern models like nomic-embed-text [13] operate at the sequence level, encoding text sequences into vectors that capture topic, style, and semantic content simultaneously. When aggregated to represent conversations, these embeddings enable multi-faceted similarity comparisons rather than simple topic matches.

Research on analyzing conversational data with AI systems has primarily focused on dialogue structure [8], user satisfaction [9], or topic modeling [11]. Few studies have examined the network structure of conversations, particularly in the context of knowledge exploration with modern large language models. Our work extends this body of research by introducing a complex network approach to analyzing the semantic structure of AI-assisted conversations.

Our dataset comprises one user’s ChatGPT conversations spanning December 2022 to April 2025 (1,908 total conversations). All conversations were organic—conducted for actual research, learning, and problem-solving purposes with no knowledge of future network analysis. The dataset reflects natural model evolution: 63% with GPT-3.5/4 (inferred from timeframe, lacking explicit model metadata), 22% GPT-4o, and 15% newer models (o1/o3 series and variants). While this model diversity introduces potential embedding variability, it reflects realistic longitudinal usage patterns.

After filtering by semantic similarity threshold, our network contains 449 conversations at $\theta =0.9$. We exported and preprocessed the conversations from OpenAI’s ChatGPT interface to extract meaningful content while preserving conversational structure. The export process generated individual JSON files for each conversation containing both message content and metadata, establishing the foundation for our embedding generation.

We generated embeddings for each conversation using the nomic-embed-text [13] model (8,192 token context window) to capture semantic content while preserving topical focus despite variations in conversation length. Embeddings were generated from message content only; metadata (titles, timestamps) was excluded to focus purely on semantic relationships. Since users typically drive conversation direction, we weighted user inputs more heavily than AI responses when creating conversation embeddings:

1. 1.

   Split each conversation into user prompts and AI responses

2. 2.

   Generated embeddings for individual messages (most within the 8K token limit, avoiding chunking)

3. 3.

   Calculated separate means: ${\overrightarrow{e}}_{user}$ (mean of all user message embeddings) and ${\overrightarrow{e}}_{AI}$ (mean of all AI message embeddings)

4. 4.

   Created the final conversation embedding as a weighted combination:

   $${\overrightarrow{e}}_{conversation}=\frac{\alpha \times {\overrightarrow{e}}_{user}+{\overrightarrow{e}}_{AI}}{\Vert \alpha \times {\overrightarrow{e}}_{user}+{\overrightarrow{e}}_{AI}\Vert }$$

   (1)

We weight user inputs more heavily (weight $\alpha$) to prioritize user intent while still incorporating AI contributions. This reflects our assumption that user prompts better represent the conversation’s semantic focus than AI responses, which tend to be lengthier and more elaborative. The optimal value $\alpha =2$ is determined through comprehensive ablation study (Section 3.3). Unit normalization preserves relative semantic relationships regardless of conversation length.

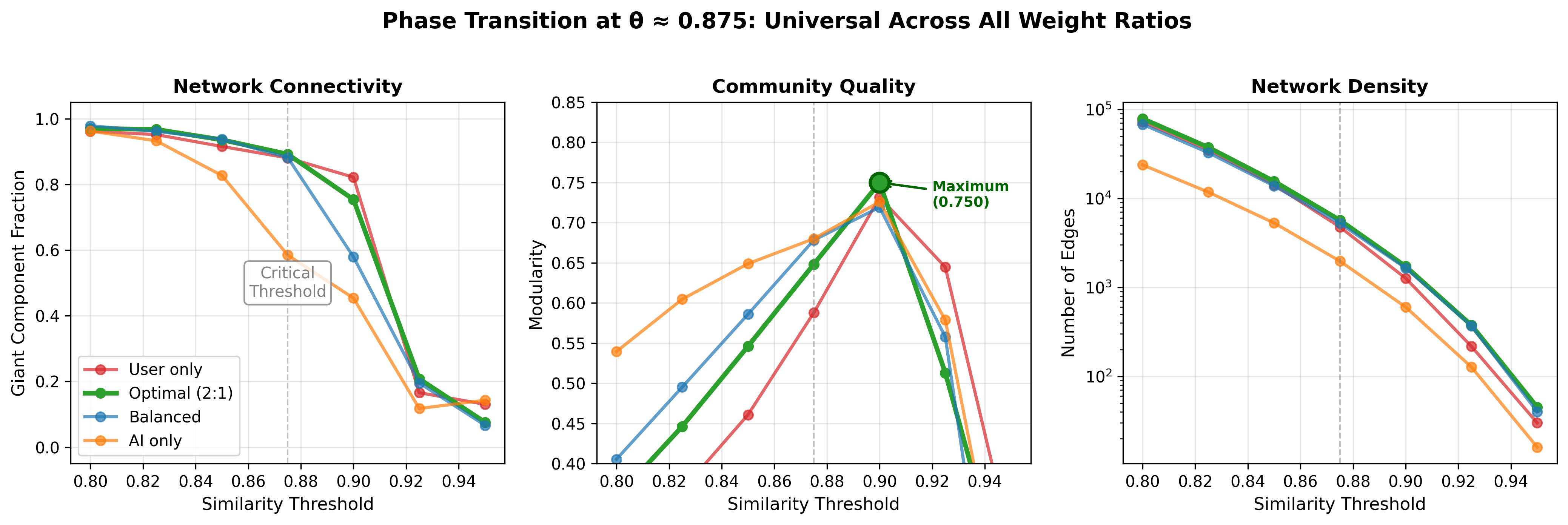

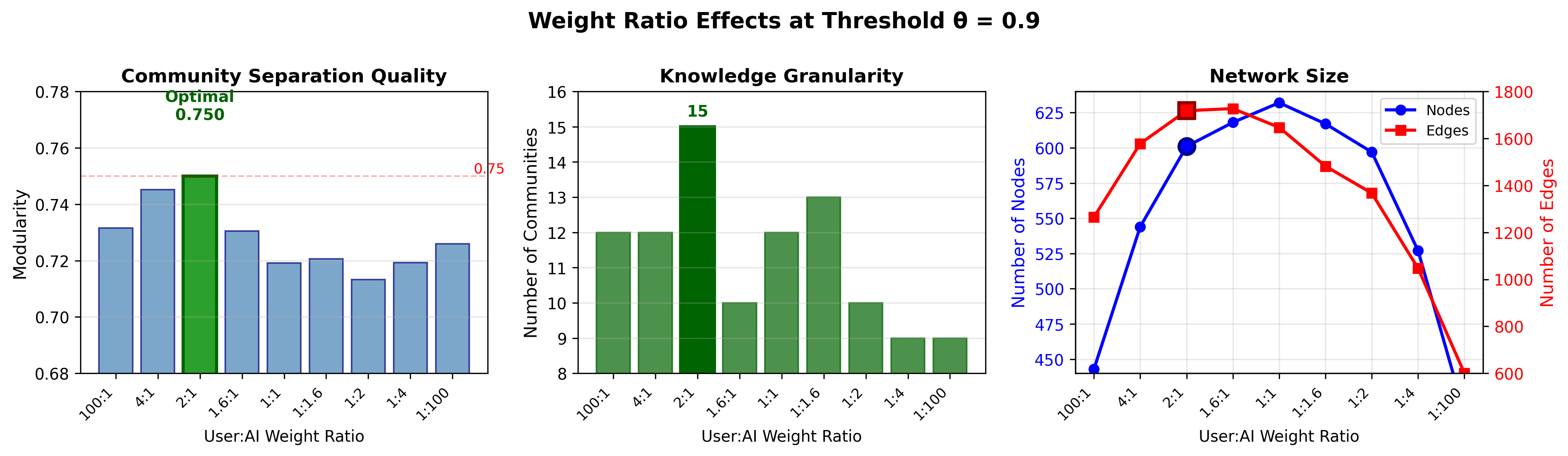

To validate our methodological choices and understand their impact on network structure, we conducted an extensive ablation study examining 63 parameter configurations. This analysis reveals how embedding weights and similarity thresholds jointly determine both quantitative network properties and qualitative knowledge organization.

Based on this comprehensive ablation study, we proceed with detailed analysis of the network at our optimal configuration: $\theta =0.9$ with $\alpha =2$ (2:1 user:AI weighting). The following sections examine the structural and semantic properties of this optimized network.

Using this network representation, we applied several standard complex network analysis techniques to characterize its structure. We used the Louvain method [14] for community detection to identify distinct knowledge domains and calculated various centrality measures (degree, betweenness, hub) to identify significant nodes in the network. We also examined core-periphery structure to understand topic stratification.

Betweenness centrality identified bridge conversations that facilitate inter-community knowledge transfer where separate domains integrate (Section 4.3).

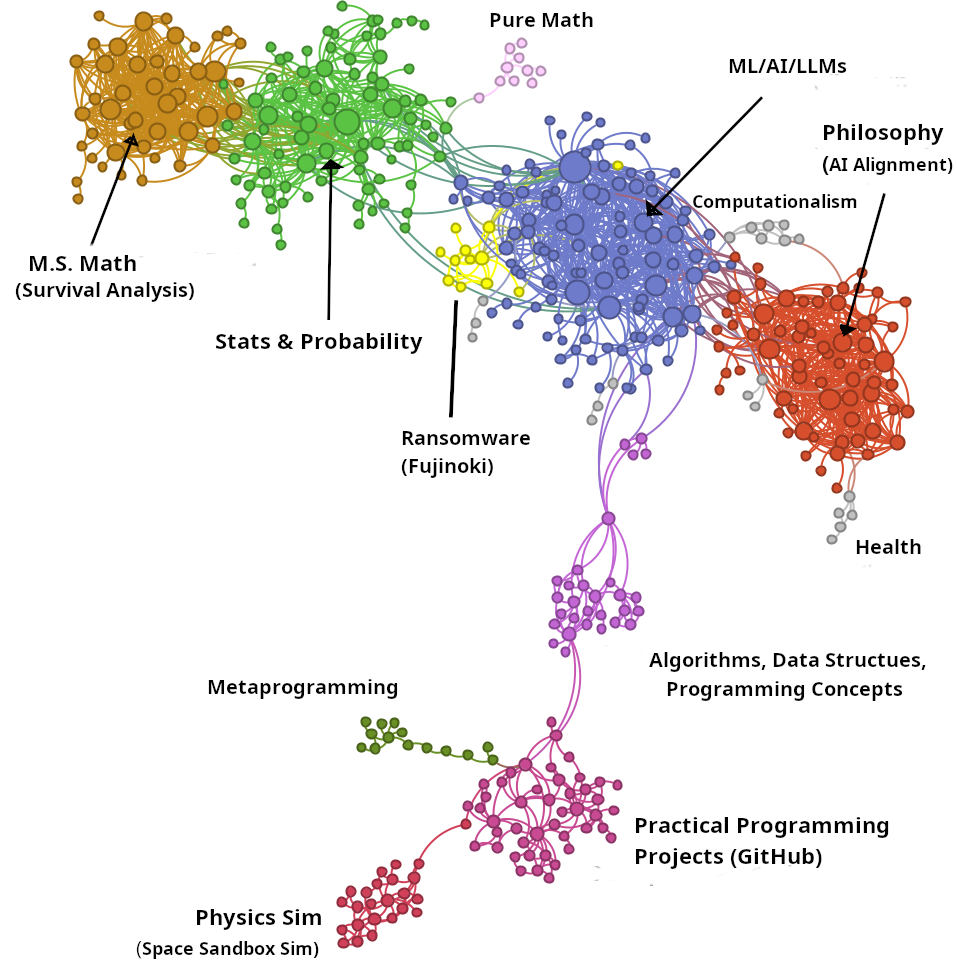

The network reveals rich topological structure, spontaneously organizing into thematic clusters despite no explicit categorization. Figure 4 shows striking heterogeneity: theoretical communities (M.S. Math, Stats & Probability, ML/AI/LLMs, Philosophy) exhibit dense hub-and-spoke structures characteristic of scale-free networks. In contrast, other communities show different organization: Metaprogramming displays tree-like branching, while Practical Programming Projects and Computationalism show more dispersed structures without dominant hubs. Specialized bridge nodes facilitate cross-domain transfer between these communities.

The network comprises 449 nodes and 1615 edges with average degree 7.19, clustering coefficient 0.60, and average path length 5.81. These metrics reveal strong local clustering with relatively long path lengths, indicating “cognitive distance” when navigating between knowledge domains. Such organization likely reflects cognitive constraints on knowledge exploration, where conceptual bridges are necessary to move between specialized domains.

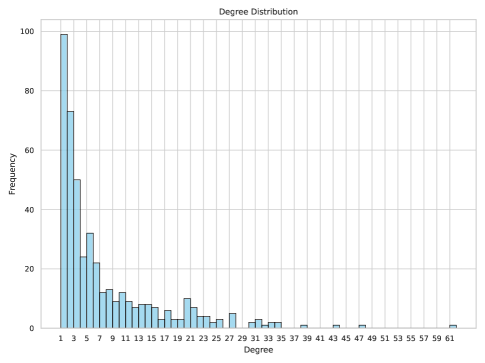

Figure 5 shows the degree histogram for our conversation network. The strongly right-skewed distribution reveals that while the majority of conversations maintain connections with only a few semantically similar conversations, a small number of hub conversations exhibit substantially higher degrees. This pattern markedly contrasts with the bell-shaped distributions typical of random networks, indicating non-random organizational principles.

Comparing our network structure with scale-free networks generated by preferential attachment reveals important differences. As visible in Figure 4, our network exhibits significantly higher clustering and path length than standard scale-free networks. These deviations stem from the network’s cognitive organization. Many communities display elongated, tree-like structures rather than the star-like configurations typical of pure preferential attachment. This is particularly evident in specialized knowledge domains like Programming Projects, where conversations tend to be independent and focused on specific topics rather than forming clusters of related conversations.

This suggests evolution beyond preferential attachment, reflecting cognitive exploration with hub formation limited by specialization and cross-domain constraints. Additionally, the network exhibits core-periphery organization with 25.6% of conversations forming a densely connected core (average degree: 18.94) surrounded by a sparser periphery (average degree: 3.15), indicating stratification between general and specialized topics.

Louvain detection revealed 15 communities representing thematically coherent domains. Table 3 presents the five largest, where Core % indicates k-core membership [15] and Clustering shows average local coefficients.

Communities correspond to distinct knowledge domains: Community 3 (ML/AI/
LLM) covers AI architectures and training; Community 12 (Stats & Probability) encompasses statistical inference and modeling; Community 7 (Philosophy & AI Ethics) addresses consciousness and AI alignment; Community 14 (M.S. Math/Analysis) contains graduate-level mathematical analysis; Community 6 (Programming Projects) focuses on practical implementation.

The variation in internal structure (average degree, clustering, and core percentage) suggests different conversation patterns across domains. For example, Community 14 shows characteristics of a specialized knowledge domain with dense expert connections, while Community 6 resembles a more practical, service-oriented domain with mostly peripheral connections.

Analysis of centrality measures reveals conversations serving dual roles as bridges (high betweenness) and hubs (high degree). Table 4 presents the top conversations ranked by betweenness centrality.

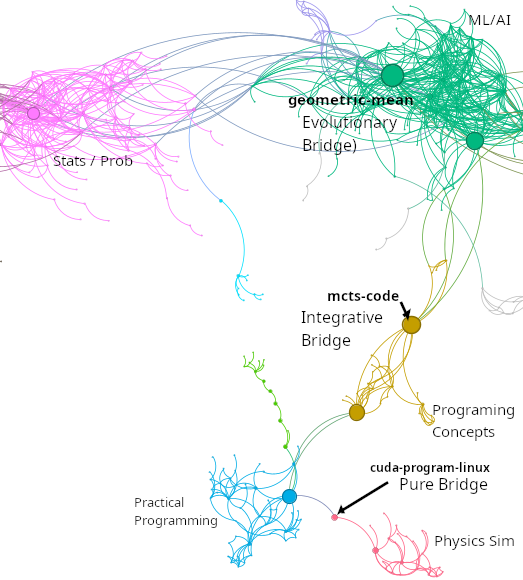

Three distinct bridge types emerge, extending structural bridge classifications [16, 17] with semantic characterization. First, evolutionary bridges are high-degree nodes that expand across domains through topic drift. For example, geometric-mean-calculation evolved from geometric means into probability theory, neural networks, and tokenization (degree=61, betweenness=45467). Second, integrative bridges are moderate-degree nodes that deliberately synthesize domains, such as mcts-code-analysis-suggestions which integrates AI theory with software engineering (degree=10, betweenness=36909). Third, pure bridges are low-degree critical links like compile-cuda-program-linux (degree=2, betweenness=9775). Figure 6 illustrates these distinct bridging mechanisms in the network structure.

Notably, some conversations like geometric-mean-calculation function as both bridges and hubs, while others like mle-bootstrapping-simulation (degree=47) serve primarily as within-community hubs. Hub nodes exhibit lower clustering coefficients (0.224 versus 0.436 average), creating radial structures that position them as conceptual distribution points. The concentration of hubs in Community 3 (ML/AI/LLM) suggests this domain serves as a conceptual anchor, contrasting with the distributed organization in practical domains like Programming Projects. These patterns reveal how conversation networks follow unique evolutionary dynamics.

The network reveals cognitive patterns distinct from academic citation networks, which provide a natural comparison as both capture knowledge exploration processes. While citation networks evolve through preferential attachment with papers citing influential work (creating major hubs like foundational papers with thousands of citations), conversation networks reflect real-time knowledge exploration. Our finding of heterogeneous topology with some tree-like, branching clusters entirely lacking hubs contrasts sharply with citation networks’ consistent scale-free structure. In citation networks, even specialized subfields connect to seminal papers, but our conversational communities like Metaprogramming show purely branching exploration without central authorities. This suggests cognitive exploration follows different organizing principles: intense local exploration punctuated by cross-topic jumps rather than cumulative authority building. This constitutes a structural trace of thinking. Just as MRI reveals the physical structure of the brain, this cognitive MRI reveals the topological structure of thought preserved in conversation logs. Three community types emerge: Expert domains such as Stats/Probability are densely connected with high clustering. Bridging domains like ML/AI/LLM are broadly connected with lower clustering. Task domains such as Programming are sparsely connected and implementation-focused. This suggests design implications: surfacing pure bridges could facilitate creative leaps, while respecting natural knowledge boundaries could improve retrieval systems.

Our single-user study limits generalizability; future work should analyze diverse users to understand how cognitive styles influence exploration patterns. The static snapshot could be extended using temporal metadata to reveal how knowledge domains evolve through continued AI interaction. Additionally, the optimal 2:1 user:AI weighting ratio likely depends on individual cognitive styles, conversation patterns, and the specific AI model used (GPT-3.5/4 in our case); multi-user studies would be needed to establish whether this ratio generalizes.

Through a single-user case study, we presented a novel application of complex network analysis to AI conversations, revealing distinct knowledge communities and bridge conversations. Our comprehensive ablation study established that a 2:1 user:AI weighting ratio ($\alpha =2$) optimally balances user intent with AI semantic contributions for this dataset, achieving maximum modularity (0.750) at similarity threshold $\theta =0.9$. The heterogeneous network topology reflects patterns in AI-assisted topic exploration, with bridges facilitating movement between specialized domains. This cognitive MRI methodology provides a framework for understanding and enhancing AI-assisted knowledge work as these systems become increasingly integrated into human cognition.
